Width
– Measure in 3 places to the nearest 0.32cm
– Order using the shortest measurement
Height
– Measure in 3 places to the nearest 0.32cm
– Order using the longest measurement
How To Measure
Roller, Double Roller, Outdoor & Honeycomb Blinds
Recess Fitting
Blinds are mounted inside the window casing.
Face Fitting
Blinds are mounted outside the window casing.
Width & Height
– Measure the exact width and height of the area to be covered
– Add 7.6cm to both width and height for better light and privacy control
Note:
- Both the submitted width and height are the finished product dimensions, including the pelmet and bottom rail.
- The blind should be installed above the window frame.
- The submitted height corresponds to the distance from the top of pelmet to the bottom of the bottom rail.
- Recess Fitting requires minimum window depth: Roller Blinds(without pelmet) 6cm, Roller Blinds(with pelmet)7.6cm, Double Roller Blinds 10.2cm, Honeycomb Blinds 5cm, Outdoor Blinds 8.4cm.
Curtains

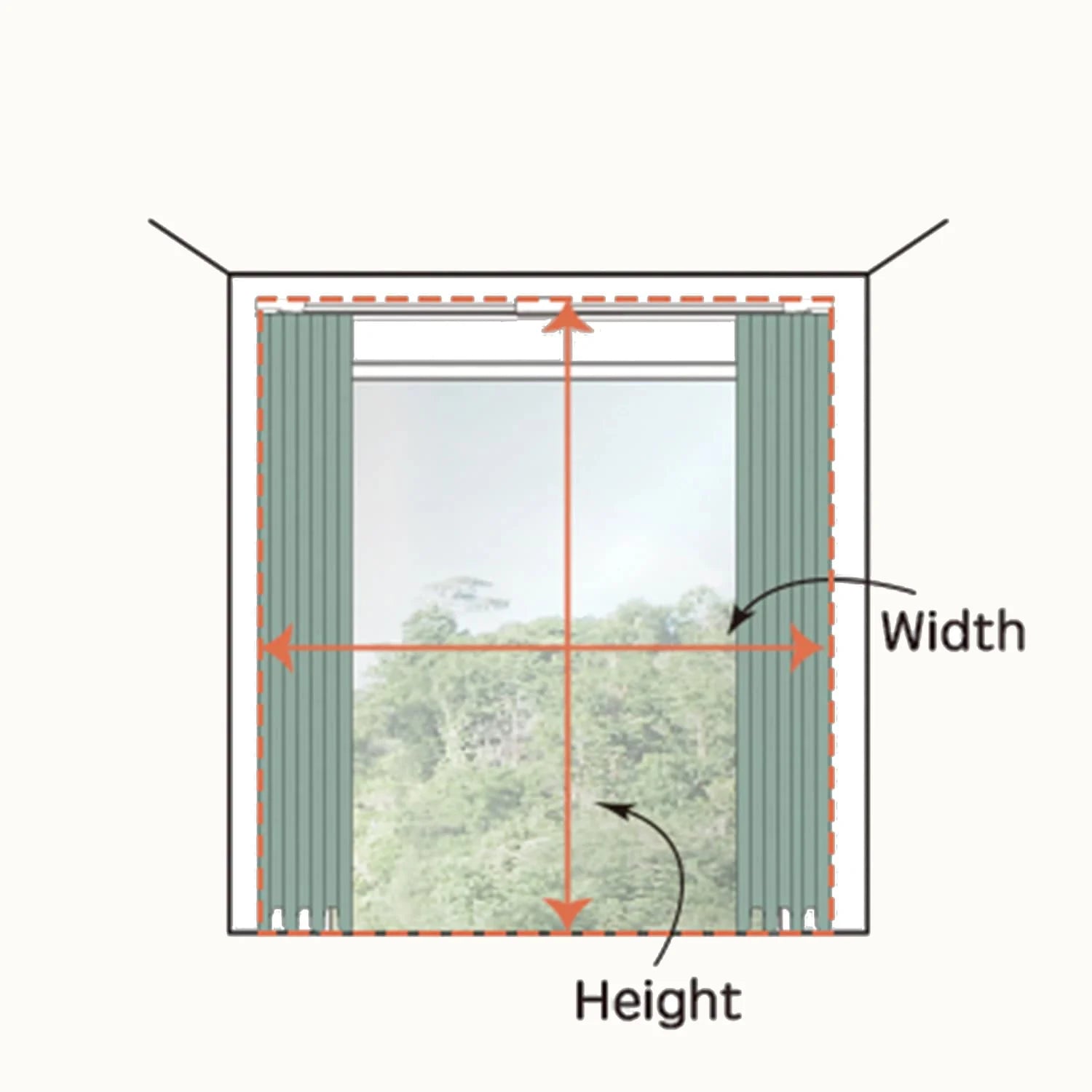

Recess Fitting
Curtains are mounted inside the window casing.
Width
– Measure in 3 places to the nearest 0.32cm
– Order using the shortest measurement
Height
– Measure in 3 places to the nearest 0.32cm
– Order using the longest measurement

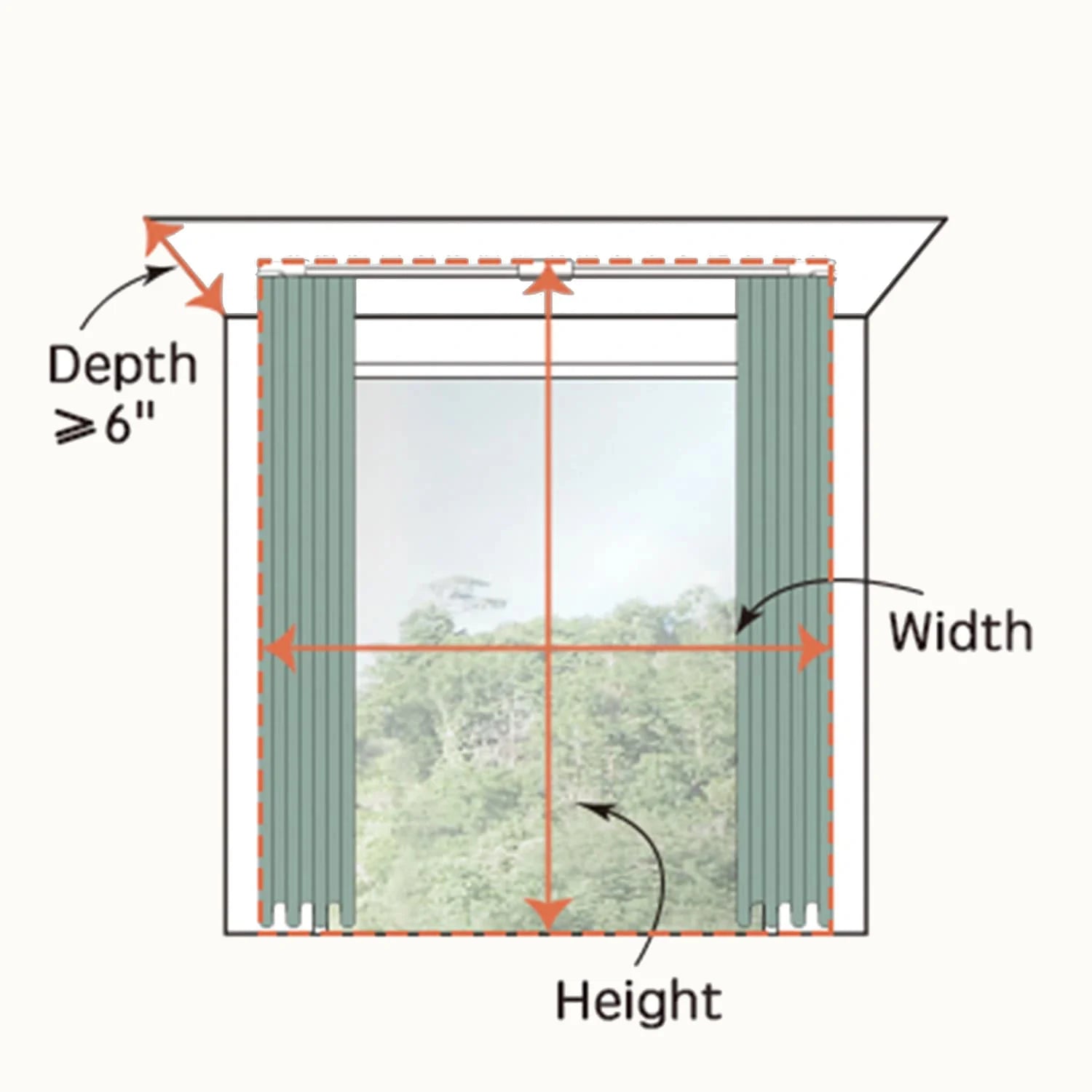

Face Fitting
Curtains are mounted outside the window casing.
Width
– To minimize light leakage, the fabric vanes should overlap the opening on the right & left side at least 10cm
Height
– The length from the top of the headrail to the bottom of the fabric. The fabric vanes should overlap the window opening at least 7.6cm at the top & bottom
Note:
- If the depth is less than 15cm, Please select outside installation.
Vertical Blinds

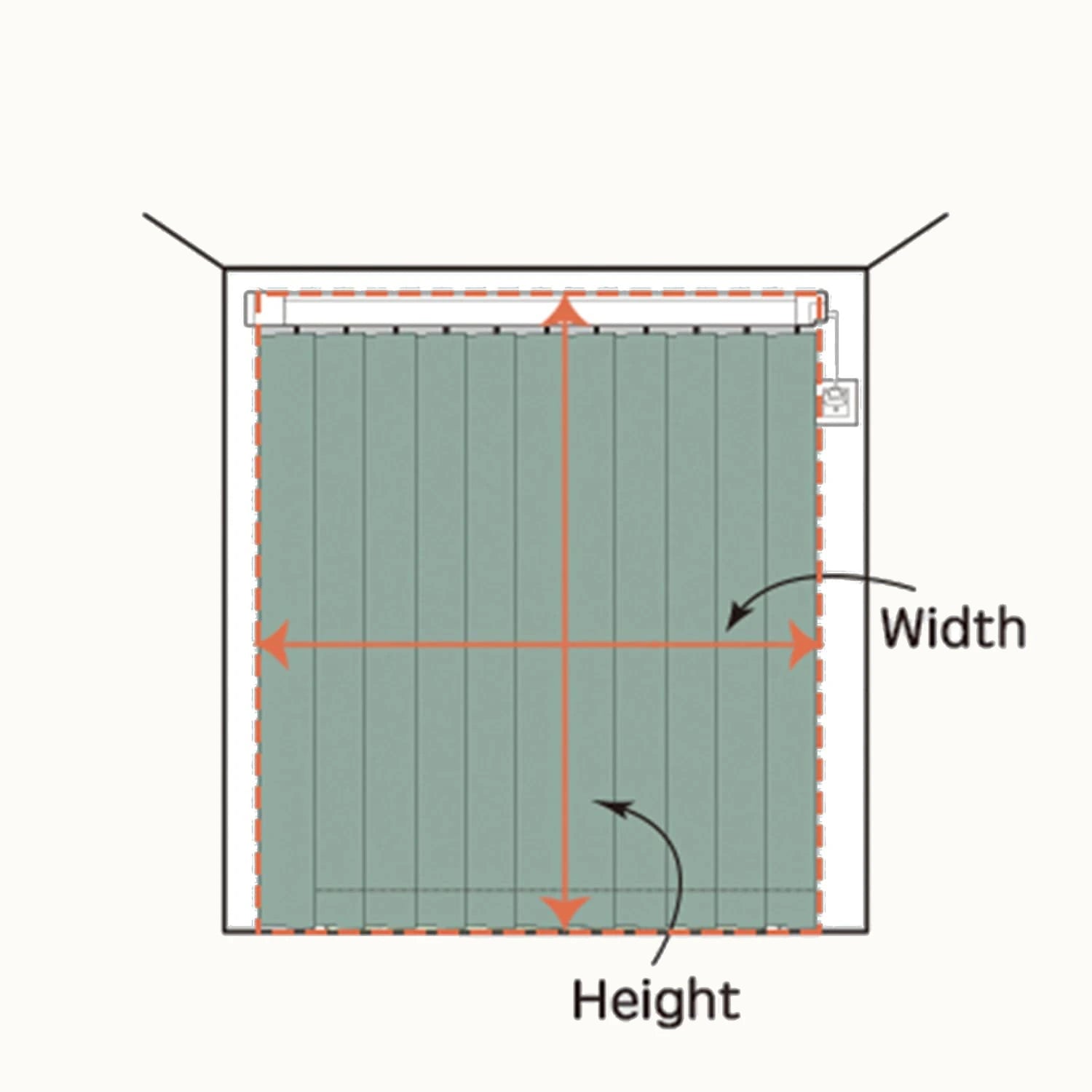

Recess Fitting
Curtains are mounted inside the window casing.
Width
– Measure in 3 places to the nearest 0.32cm
– Order using the shortest measurement
Height
– Measure in 3 places to the nearest 0.32cm
– Order using the longest measurement
Face Fitting
Curtains are mounted outside the window casing.
Width
– To minimize light leakage, the fabric vanes should overlap the opening on the right & left side at least 10cm
Height
– The length from the top of the headrail to the bottom of the fabric. The fabric vanes should overlap the window opening at least 7.6cm at the top & bottom
Note:
- If the depth is less than 17.8cm, Please select outside installation.
Panel Glide Blinds
Recess Fitting
Curtains are mounted inside the window casing.
Width
– Measure in 3 places to the nearest 0.32cm
– Order using the shortest measurement
Height
– Measure in 3 places to the nearest 0.32cm
– Order using the longest measurement
Face Fitting
Curtains are mounted outside the window casing.
Width
– To minimize light leakage, the fabric vanes should overlap the opening on the right & left side at least 10cm
Height
– The length from the top of the headrail to the bottom of the fabric. The fabric vanes should overlap the window opening at least 7.6cm at the top & bottom
Note:
- If the depth is less than 12.7cm, Please select outside installation.
